Established in 1928, the company has mature integrated transmission technology. Integrating R&D, manufacturing, sales and services, the company is committed to establish as a professional supplier of integrated automatic transmission solutions in the world.

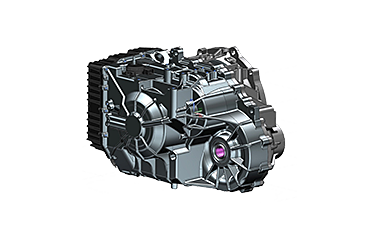

  • DSI M06 FWD-6AT
    DSI M06 FWD-6AT

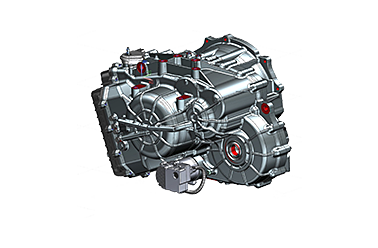

  • DSI M05 FWD-6AT
    DSI M05 FWD-6AT

The overall aims  for this transmission are:

①Reduction in packaging size②Weight reduction
③Efficiency improvement④Increased reliability
⑤Revised gear ratioses⑥Multiple options for final drive ratio
⑦Optimized main case and housing to improve oil control⑧New TCU
⑨Improved hydraulic control⑩Improved shift quality, including garage shifts
⑪Integrated external oil pump option⑫Stop/Start functionality
⑬Shift by Wire (SBW) option⑭Hybrid option


The major specifications for this development are:

①Overall weight approximately 83kg②Main case designed to improve oil control and reduce churning
③Overall packaging optimised to suit vehicle installation④Maximum Input Shaft Torque : 364Nm
⑤Engine speed : 500rpm Min / 6800rpm Max⑥External oil pump
⑦Valve body incorporating new generation VBS for improved hydraulic performance⑧P2 Hybrid option included in the design









The overall aims  of this development are:

① Reduction in packaging size in critical areas for vehicle installation② Efficiency improvement
③ Increased reliability④ Optimized main case and housing to improve oil control
⑤ New TCU⑥ Improved hydraulic control
⑦ Improved shift quality, including garage shifts⑧ Integrated external oil pump option
⑨ Stop/Start functionality⑩ Shift by Wire (SBW) option
⑪ Hybrid option⑫ Compatible with current M23 vehicle installations


The major specifications  for this development are:

① Main case designed to improve oil control and reduce churning② Overall packaging optimised to suit vehicle installation
③ Maximum Input Shaft Torque : 470Nm④ Engine speed : 500rpm Min / 6500rpm Max
⑤ Weight : 90kg⑥ External oil pump
⑦ Valve body incorporating new generation VBS for improved hydraulic performance⑧ P2 Hybrid option included in the design.
