    Established in April 2009, Deyang Electronic Technology Co., Ltd. is a high-tech enterprise that is engaged in the R&D, production and sales of key modules like electric motors, controls, VMS, BMS for electric cars.
    • Permanent Magnet Synchronous DC Motor
      Permanent Magnet Synchronous DC Motor
    • Motor Control System
      Motor Control System
    • Vehicle Control System
      Vehicle Control System
    • Battery Control System
      Battery Control System

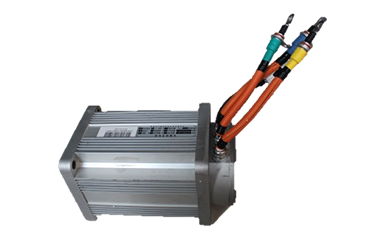

    It utilizes advanced electromagnetic simulation technology and adopts new designs of stator and rotor grooves, yoke and teeth sizes, and uses reasonable gap flux density value at the yoke and teeth of the electric motor. Though the product uses common electromagnetic materials, compared with electric motor of the same power, it features less materials, small size, light weight, low noise, even heat dissipation, high efficiency and high power density, etc.


    Items

    4KW5KW6KW9KW15KW15KW

    Rated voltage(V)

    7272727296114

    Rated current (A)

    ≦62≦77≦91≦139≦174 ≦116

    Rated power (KW)

    45691515

    Peak power (KW)

    81012183530

    Rated revs (r/min)

    310030003000500050005200

    Max revs (r/min)

    360035003600570070007200

    Rated torque (Nm)

    12.315.919.117.22927.5

    Locked-rotor torque (Nm)

    7580828512090

    Motor efficiency (%)

    ≥92≥92≥92≥92≥92≥92

    Protection level

    IP56IP56IP56IP56IP67IP67

    Cooling

    Natural air cooling

    Natural air cooling

    Natural air cooling

    Natural air cooling

    Natural air cooling

    Natural air cooling

    Sensor

    Electrical angle 120°

    Electrical angle 120°

    Electrical angle 120°

    Rotary transformer

    Rotary transformer

    Rotary transformer

    Operating mode

    S9S9S9S9S9S9

    Weight(kg)

    18.719.420.322.53030

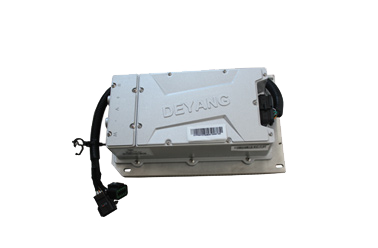

    The electric motor control system adopts sine wave vector control technology which features advantages like high efficiency, stability, low noise and easy installation. The series control devices can work with relatively smaller battery current while providing good acceleration and gradeability. Meanwhile, the regenerative brake system can gather the energy during brake, which can effectively increase the cruising mileage and reduce energy consumption. It adopts large power MOSFET high frequency design and its efficiency is up to 96%. It also features precision control with a powerful intelligent microprocessor.



    Model4KW5KW6KW9KW15KW15KW

    Rated work voltage

    7272727296114

    Rated output phase current (A)

    170180200250300105

    Peak value phase current (A)

    400450500700850450

    Volume (KVA)

    303540508065

    Communication port

    CANCANCANCANCANCAN

    Cooling

    Natural cooling

    Natural cooling

    Natural cooling

    Natural cooling

    Natural cooling

    Natural cooling

    Dimension (mm)

    339*220*145339*220*145339*220*145339*220*145365*224*114350*230*123
    MM (kg)6.56.8777.28.6

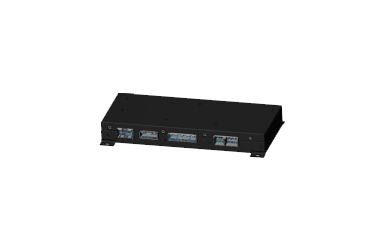

    The VMS (vehicle management system) has complete functions and stable and reliable performance. It has been applied in the Zhidou electric cars which has achieved good market performance. The system can be used in various kinds of electric vehicles. The VMS and CAN bus net gathers the operating signals and electric control parts information in real time and realizes weak current control, strong current management, operating status control, brake energy recovery, fault protection and instrument display functions through the integrated electric control system.


    Items

    VMS

    Rated voltage

    DC12V

    Protection level

    IP5X

    CAN bus

    2 wire

    Digital value input

    16 path, high level

    Digital value output

    8 path, 130mA drive capability

    Simulation value input

    4 path

    External power

    5V, max current 400mA

    Dimension(L*W*H)

    157*103*29

    Weight (kg)

    0.5

    Operating temperature

    30°C--85°C

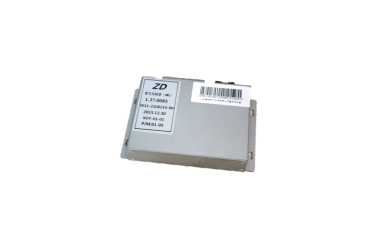

    The EV series BMS (battery management system) utilizes international advanced BMS technology, featuring high precision voltage test, current test, temperature test (compatible with NTC and digital temperature sensor), SOC estimation, SOH estimation, energy estimation, etc. It can accurately monitor the working status of the lithium battery which can avoid the battery being overcharged or overdischarged. The system also has various functions including equalization management , equalization failure diagnosis, hardware wake-up and CAN bus remote wake-up, quick charging and temperature management, open circuit diagnosis, hardware self-checking, and 24-hour battery monitoring function, etc. I can be used in the full series lithium ion battery electric vehicles.



    BMS

    24 Series

    48 Series

    Voltage

    9 ~32VDC

    Single cell voltage detection

    ≦土 5mV (0-5V)

    Single cell voltage resolution

    1mV

    Total voltage detection

    ≦±1%, resolution is 0.1V

    Insulation detection

    <100 Ω/V

    Current detection range

    ≦±1% (-300~300A)

    Equalizing Current

    100mA

    SOC measurement

    ≦±8%

    Battery temperature

    -40°C~125°C

    Temperature resolution

    1°C

    Work environment temperature

    -30~85°C

    Ambient temperature for storage and transportation

    -40~95°C

    Installation size

    222 × 128 × 35mm283 ×110 ×36mm
